BKV25AGE

Automatic motor with electronics 2500kg

Mark: Came, Max. wing length: 20m, Recommended weight of the wing: 1250kg, Module of the gear comb: mod 6, End point: Magnetic end stop, Use: Industry, Drive slowdown: Drive decelerate before endpoint, Motor power supply: DC 36V, Performance: 300W, Force: 1500N, Speed: 12 m/min, Power supply: AC 230V, Controller: ZN8, Master/Slave: Yes, Protection level: IP54

€950,62
without VAT
€1.140,74
with VAT
PCS
Stock availability
SK Krompachy 5
AT Alwinox 0
Description Parameters Download Parts of set Catalog list Required products Related products Alternative products In sets

Description

The Came BKV25AGE operator represents a new generation of automation for sliding gates, combining powerful performance with intelligent functions.
It is designed for intensive use, making it an ideal choice not only for larger private residences, but also for industrial facilities and apartment buildings.

Main advantages and technologies

Adaptive Speed Torque technology: This system continuously evaluates the weight and weather conditions (e.g. wind or friction), ensuring smooth movement and constant gate speed in all circumstances.
36 V DC motor with encoder: The 36 V motor enables safe and quiet operation with a high output of 300 W. The encoder ensures millimetre-precise deceleration before the end positions.

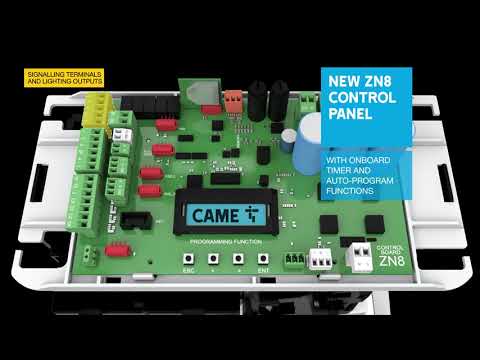

Fully graphic display: The ZN8 control unit is equipped with a display that significantly simplifies programming, diagnostics and management of up to 250 users.
Magnetic limit switches: Unlike mechanical switches, magnetic switches are more resistant to freezing and dirt, ensuring trouble-free operation even in demanding winter conditions.
Smart connectivity: Supports CAME CONNECT technology, allowing you to control and monitor your gate remotely via smartphone using the cloud.

Technical specification

  • Maximum gate weight: 2500 kg (1250 kg recommended)
  • Maximum leaf length: 20 m
  • Travel speed: 12 m/min
  • Protection rating: IP54 (high resistance to dust and splashing water)
  • Motor power supply: 36 V DC
  • Operating temperature: -20 °C to +55 °C

Parameters

Mark
Information about producer of product
Came
Max. wing length
Maximum wing length for the given drive
20m
Module of the gear comb
Určuje kompatibilitu hrebeňa s pastorkom motora.
mod 6
Recommended weight of the wing
Odporúčaná hmotnosť krídla brány pre správnu funkčnosť pohonu.
1250kg
End point
Information about the need for gate end stops with the selected drive.
Magnetic end stop
Use
Industry
Drive slowdown
Information about the drive slowing down before the end position.
Drive decelerate before endpoint
Motor power supply
Type and value of the motor supply voltage
DC 36V
Performance
300W
Force
1500N
Speed
Parameter of the drive feed speed
12 m/min
Power supply
Type and value of the power supply voltage
AC 230V
Controller
ZN8
Master/Slave
Yes
Protection level
IP54

Download

PDF
Manual – full version

Parts of set

Automatic motor with electronics 2500kg Automatic motor with electronics 2500kg

Automatic motor with electronics 2500kg BKV25AGE

1 pcs
Mark
Came
Max. wing length
20m
Module of the gear comb
mod 6
Electronics for Came BKV

Electronics for Came BKV ZN-8

1 pcs
Mark
Came
Drive slowdown
Drive decelerate before endpoint
