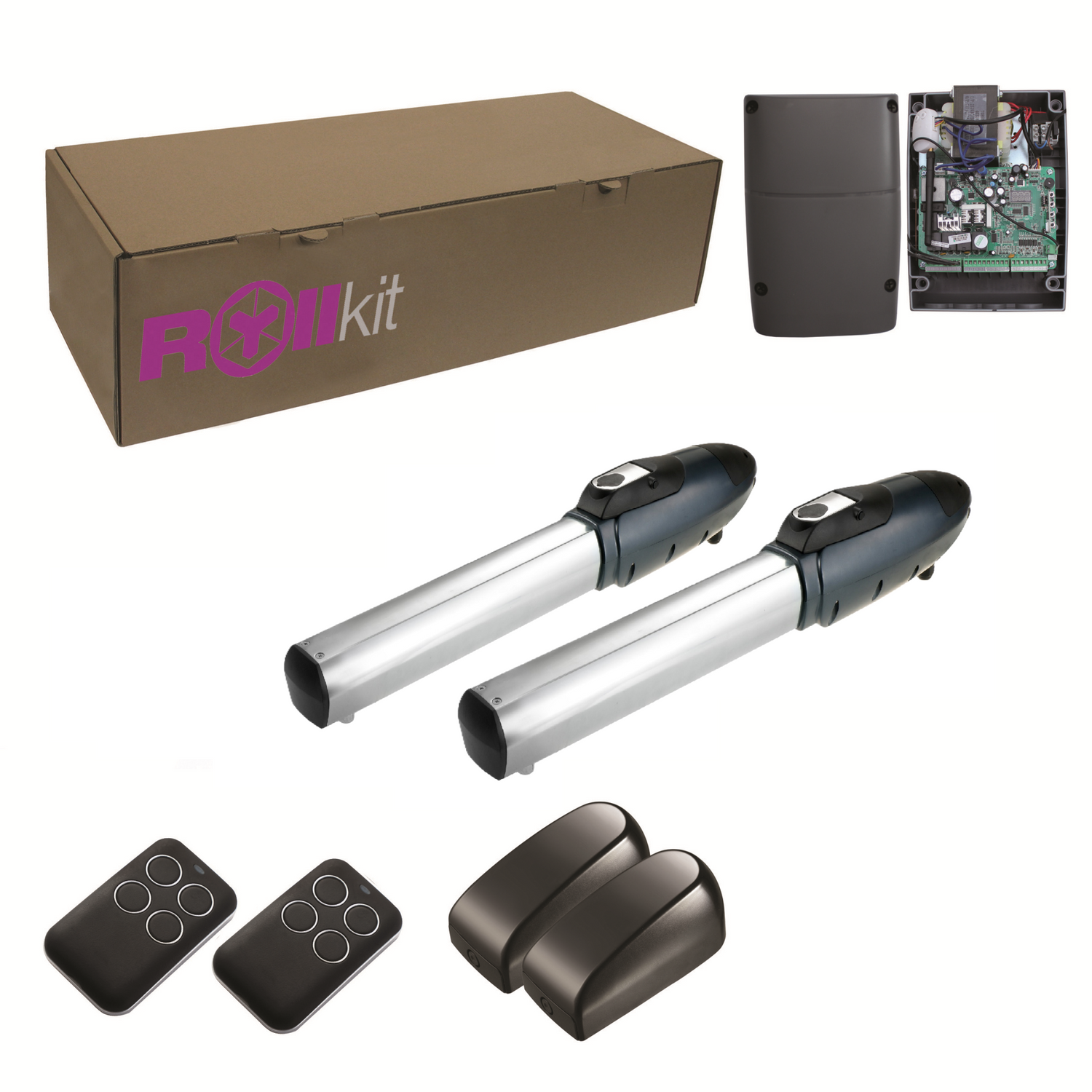

ROLLKIT drive for double-leaf gate, set with photocells
€502,90
Unit price
/
Unavailable
Beschreibung
ROLLKIT drive for double-leaf gates with the possibility of control by a mobile device. The drive includes CUW-24S electronics with extended functions and SMARTBOX1-WIFI for connecting the drive electronics to the home Wi-Fi network. The possibility of connecting an IP camera and a Wi-Fi doorbell.
Parameter
Mark
Information about producer of product
Rollkit
Max. wing length
Maximum wing length for the given drive
3m
Recommended weight of the wing
Odporúčaná hmotnosť krídla brány pre správnu funkčnosť pohonu.
150kg
Frequency (MHz)
Určuje frekvenciu ovládača a riadiacej elektroniky.
433
End point
Information about the need for gate end stops with the selected drive.
No need end points
Wifi connection
SMART connection with Wifi
Yes
Code type
Typ kódu pre správnu kombináciu ovládača s elektronikou.
Rolling
Drive slowdown
Information about the drive slowing down before the end position.
Drive decelerate before endpoint
Motor power supply
Type and value of the motor supply voltage
DC 24V
Power supply
Type and value of the power supply voltage
AC 230V
Controller
CUW-24S
Teil von Set
ROLLKIT drives for swing gate do 4m/400kg SWING-3024-Smart
1 pcs
Mark
Rollkit
Max. wing length
3m
Recommended weight of the wing
150kg
ROLLKIT photocell for plaster max 20m FT-20
1 pcs
Mark
Rollkit
Power supply
12-24V AC/DC
Protection level
IP54
