A14/2500-048

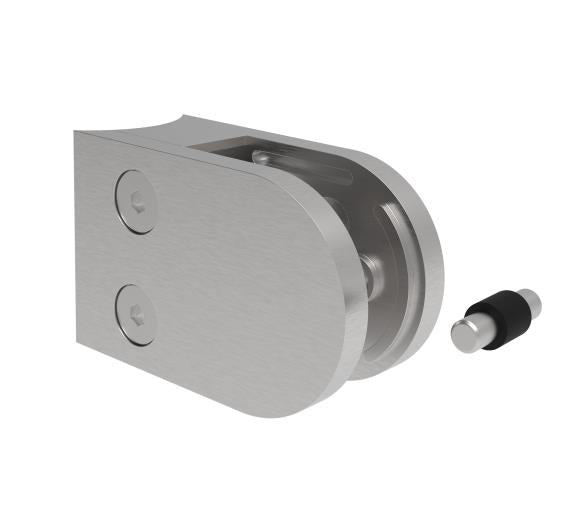

Glass clamp

Material: Stainless steel AISI 316, Surface finish: Satined, Glass t: 6/6,76/8/8,76/10/10,76/12/12,76, Post: D48,3, Model: Model 25, Phi: 48,3

€8,77
without VAT
€10,52
with VAT


PCS
Stock availability
SK Krompachy > 250
AT Alwinox 18

Description

A glass (sheet metal) infill holder is a structural element used to fasten and stabilize glass or sheet infill in various constructions, such as railings, balconies or stairs. This holder ensures a firm and secure attachment of the filling, thus increasing the overall stability and safety of the structure. They are part of modern architectural solutions that combine functionality, safety and aesthetic appearance. When choosing a holder, it is important to consider its material, design, functionality and compatibility with a specific filling and overall construction. Full holding - insurance against falling out is achieved using a clamping joint (recommended use for top anchoring) or clamping joint + safety pin (recommended use for side anchoring). The holder does not include a seal (need to purchase 2 seals according to the thickness of the glass) and screw caps.

Parameters

Material
Defines the material from which the product is made.
Stainless steel AISI 316
Surface finish
Surface finish of product
Satined
Glass t
Determines the thickness of the glass in mm the product is suitable for
6/6,76/8/8,76/10/10,76/12/12,76
Model
Model 25
Post
Determines use based on the size and shape of the post
D48,3
Phi
48,3
