Q5/08-VM 250-M12-135

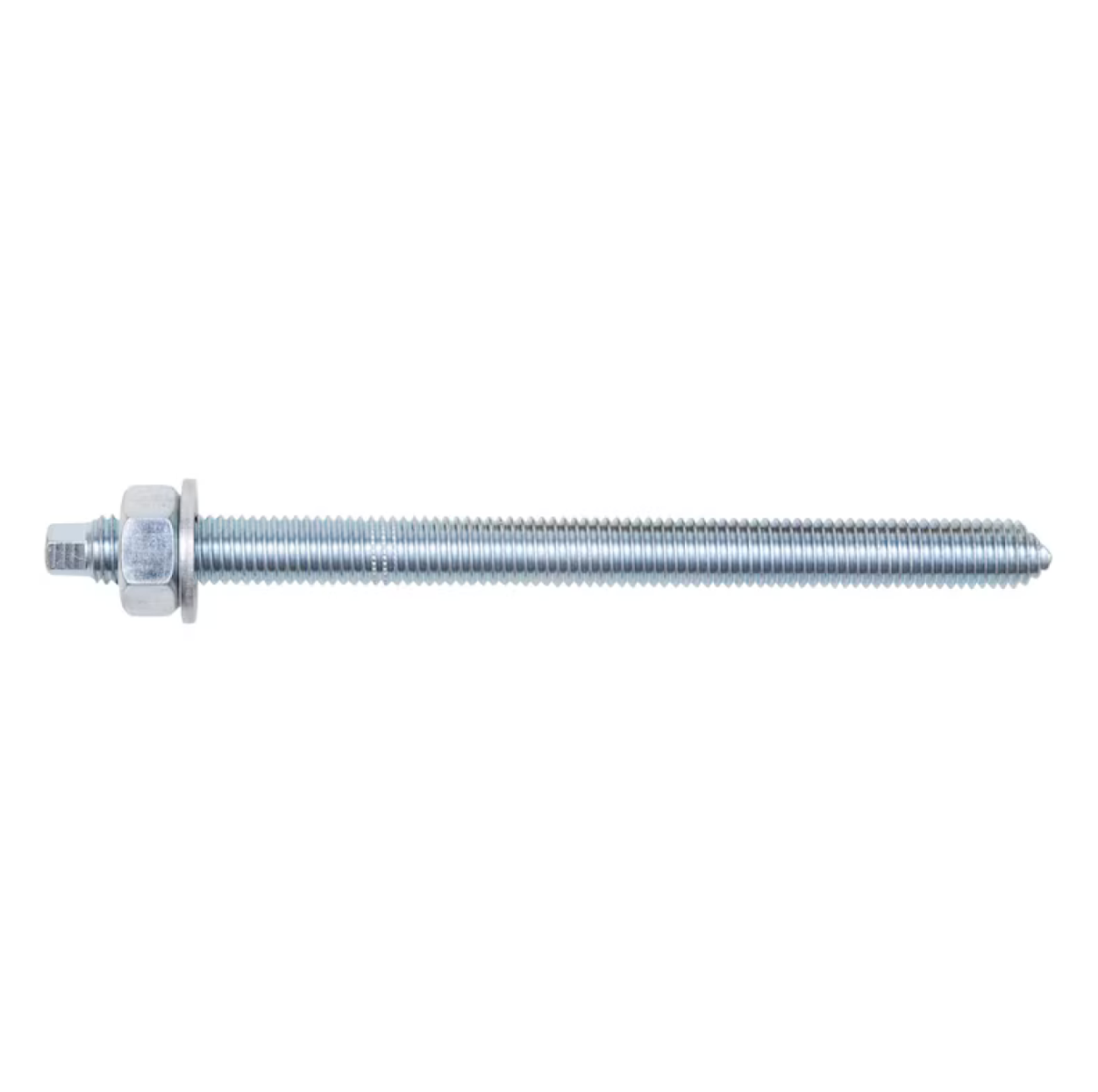

Anchor rod, Zn, M12, L135

Material: Steel, Surface finish: Galvanized, L: 135, Use: Anchoring, M: 12

€2,33
without VAT
€2,80
with VAT


PCS
Stock availability
SK Krompachy 0
AT Alwinox 0

Beschreibung

Anchor rod with peak angle and hex socket (allows rotary impact insertion with cassette system)
Usage:
- in dry interiors

Approval:
ETA-06/0074
ETA-12/0164
ETA-12/0569
ETA-17/0127
ETA-19/0542
ETA-20/0647
ETA-20/1038
ETA-21/0168

Metric anchor diameter: M12
Property class: 5.8
Attachment height: 10 mm
Anchor length: 135 mm
Effective anchoring depth: 110 mm
Nominal drill-bit diameter injection system: 14 mm
Drill hole depth: 110 mm

Parameter

Material
Defines the material from which the product is made.
Steel
Surface finish
Surface finish of product
Galvanized
L
Length parameter of the product
135
Use
Anchoring
M
12

Katalogblatt

Ankerstange, Zn, M12, L135
Alwinox

Anchor rod, Zn, M12, L135

€2,33
Anchor rod with peak angle and hex socket (allows rotary impact insertion with cassette system)
Usage:
- in dry interiors

Approval:
ETA-06/0074
ETA-12/0164
ETA-12/0569
ETA-17/0127
ETA-19/0542
ETA-20/0647
ETA-20/1038
ETA-21/0168

Metric anchor diameter: M12
Property class: 5.8
Attachment height: 10 mm
Anchor length: 135 mm
Effective anchoring depth: 110 mm
Nominal drill-bit diameter injection system: 14 mm
Drill hole depth: 110 mm
